Pleated High-Flow Cartridges For Bag Filter Housing

The platinum select series is a pleated style bag filter offering greater surface area, large dirt holding capacity, high flow rates and low cost. This filter is ideal for catalyst recovery due to its size and ease of use.

Characteristics

Multiple pleated layers construction
High filtration area
High flow-rate
High dirt holding capacity
Filtration direction from in to out
Sealing gasket suitable for the majority of bag filter housings
Inner core for high mechanical strength
Outer cage to protect the pleated media
Designed to fit in bag filter housing size 1 and 2
No fibre releasing
Wide range chemical compatibility
Polypropylene hardware
Fusion bonding assembly
Four different filter media available
FDA approved materials (only for full polypropylene model)
1935/2004/CE certification available upon request (only PP version)
Absolute filtration rating from 0.6 to 80 μm

Max. Working Temperature

80®C

Differential Pressure

Cartridge replacement	2.0 bar @ 50 °C
Max. allowable:	2.4 bar @ 20 °C
Max. allowable:	1.8 bar @ 50 °C

Materials of Construction

Filter media:

Polypropylene
Polyester
Fiberglass
Polypropylene melt-blown

Hardware

Polypropylene.

Gaskets

Buna-n
Viton
EPDM (standard)
Silicone

Dimensions

External diameter	6” (152 mm)
Length:	Size 1
Length:	Size 2

Filtering Area

Pleated standard	Size 1: 2.0 m²	Size 2: 4.1 m²
Pleated depth	Size 1: 0.7 m²	Size 2: 2.0 m²
Melt-blown	Size 1: 0.13 m²	Size 2: 0.32 m²

Flow-rate / Delta-P data – DHC

Micron (μm)	Polypropylene
Micron (μm)	Size 1	Size 2
0.6	3	6
1	3.6	7.2
3	8.7	17.4
5	13.2	26.4
10	18	36
25	21	40
≥ 50	30	40

Glass Fibre
Size 1	Size 2
9	18
15	30
17	32
20	40
27	40
31.5	40
40	40

Melt-blown
Size 1	Size 2
n.a.	n.a.
n.a.	n.a.
4	8
8	16
9.5	19
12	24
18	36

DHC
Size 1	Size 2
1150	2350
1250	2500
1300	2600
1300	2600
1350	2700
1450	2900
1650	3300

Liquids flow-rate(m3/h) – Initial Delta-P 0.1 bar – DHC (gr).
For liquids different than water, multiply Delta-P by viscosity.
Flow-rate valid for clean water, reduce the flow-rate according to the application.

Filtration efficiency/ Filtration rating availability

(μm)	Efficiency
	Pleated		Melt-blown
	99.98%	90%	99.98%	90%
0.6	0.6 μm	0.25 μm	n.a.	n.a.
1	1 μm	0.45 μm	1 μm	0.6 μm
3	3 μm	0.80 μm	3 μm	1 μm
5	5 μm	2.0 μm	5 μm	3 μm
10	10 μm	4.5 μm	10 μm	5 μm
25	25 μm	10 μm	25 μm	10 μm
50	50 μm	25 μm	50 μm	30 μm
80	80 μm	60 μm	80 μm	55 μm

Filtration efficiency for liquids defined with Multipass ISO 4572 test.

Filter media	Filtration rating (μm)
Filter media	0.6	1	3	5	10	25	50	80
Polypropylene	X	X	X	X	X	X	X	X
Fiberglass	X	X	X	X	X	X
Polyester			X	X	X	X	X	X
Melt-blown		X	X	X	X	X	X	X

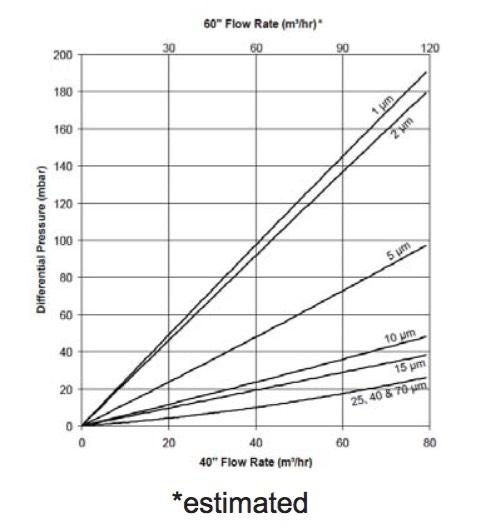

Flow Characteristics

Downloads

File	Description	File size	Downloads
Pleated_High-Flow_Cartridges		281 KB	795
